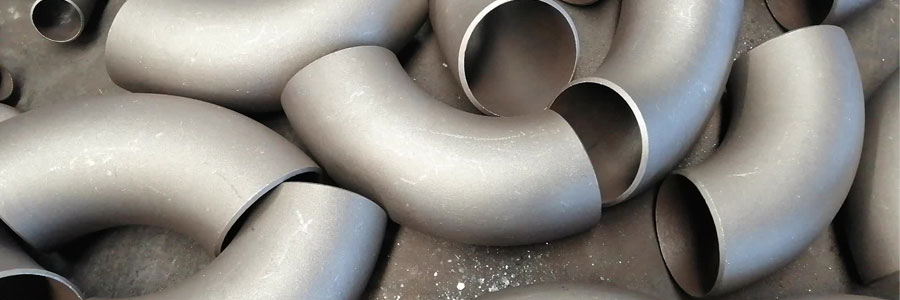

Stainless Steel 317 Pipe Fittings
317 Stainless Steel Buttweld Fittings, 317 Stainless Steel Pipe Fittings, SS 317 Elbow, Stainless Steel 317 90 degree Elbow at Best Price in India.
VM Energy Solutions INC is a recognised exporter and manufacturer of SS 317 Pipe Fittings, which are corrosion and chemical resistant. Stainless Steel UNS S31700 Lap Joint Stub End Pipe Fittings may be furnished with a tensile strength, to supply tempers. The managed evaluation of this product allows it to preserve enough ductility in situations to be roll or brake formed into aircraft, architectural and especially rail, car, and structural additives. We offer these products at distinctly aggressive expenses and supply consignment inside stipulated time. It isn't always endorsed for focused nitric acid functions or distinctly oxidizing nitric acid solutions. It is smooth and ductile, as are all austenitic steels, wherein cold forming does now no longer harm the corrosion resistance nor any heat remedy is needed afterwards.
- Stainless Steel 317 Pipe Fittings Standard Specification
- Stainless Steel 317 Buttweld Fittings International Standard
- Stainless Steel 317 Pipe Fittings Equivalent Grade
- Different Forms of 317 Stainless Steel Pipe Fittings
- Stainless Steel 317 Pipe Fittings Chemical Composition
- 317 Stainless Steel Pipe Fittings Mechanical Properties
- Stainless Steel 317 Buttweld Fittings Thickness Chart
- Stainless Steel 317 Pipe Fittings Tolerance Chart
- Largest Inventory Of Stainless Steel 317 Pipe Fittings
Moreover, way to the near manipulate of impurities consisting of carbon, silicon, phosphorus which might be regarded to be deleterious to the resistance of this Stainless Steel WNR 1.4449 Short Stubend Pipe Fittings in nitric acid solutions within the sensitized condition, it plays very well in chemical solution. The excessive corrosion resistance of this alloy is primarily based totally at the formation of a homogeneous, compact passive layer at the surface. However, the delivered debris on this product did now no longer show benefits to the wear and tear resistance of the coating. However, it ought to be used on every occasion excessive put on resistance and spring capabilities are required in additives of easy shape designs.
Stainless Steel 317 Reducer, SS 317 Pipe Tee, DIN 1.4449 45 Degree Elbow, ANSI B16.9 SS 317 Stub End, Stainless Steel 317 Pipe Elbow, ASTM A403 SS 317 Pipe Fittings, UNS S31700 Pipe Cap Supplier in Mumbai, India.
Alloy 317 Short Stubend Pipe Fittings are production materials by means of approach of getting a fantastic corrosion-resistance, efficiency and fabrication capabilities. However, the heat resistance, mechanical properties and corrosion of these products are becoming suffering from the chemical composition of the steel. It can willingly meet an in depth form of design standards, which encompass weight, provider existence and occasional-slung maintenance. Meanwhile, we provide these products in distinct sizes, grades and thickness as consistent with custom-made demands supplied by means of our clients at a totally affordable price. They are regarded for excessive tensile strength and corrosion resistance.
We Keep Bulk Stock Of UNS S31700 Pipe Bend, 317 Stainless Steel Pipe Fittings at Our Stockyard, Check SS 317 Welded Fittings Dimension, Buy SS 317 Seamless Pipe Fittings at an Affordable Price In India.
Stainless Steel 317 Pipe Fittings Standard Specification
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2" - 10" Welded Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Stainless Steel 317 Buttweld Fittings International Standard
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SA-403 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Stainless steel butt-welding fittings |
| MSS SP-43 | Wrought stainless steel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Stainless Steel 317 Pipe Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | - |
Different Forms of 317 Stainless Steel Pipe Fittings
SS 317 Elbow
SS 317 Stub End
SS 317 Cross
SS 317 Pipe Cap
SS 317 Tee
SS 317 Pipe Bend
SS 317 Pipe Nipple
SS 317 Concentric Reducer
SS 317 Eccentric Reducer
Stainless Steel 317 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
317 Stainless Steel Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Bulk Stock of 317 Stainless Steel Pipe Fittings, Rate of ASTM A403 F317 Pipe Cap in India, Check online 317 Stainless Steel Elbow Pressure Ratings, Largest DIN 1.4449 Reducer Stockist in India, We offer Stainless Steel 317 Stub End in almost all Sizes.
Stainless Steel 317 Buttweld Fittings Thickness Chart
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Stainless Steel 317 Pipe Fittings Tolerance Chart
| Nominal Diameter | O.D.For Bevel End | I.D.For End | Wall Thickness | Elbow | Tee | Reducer | Cap | 180°Elbow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | A | B | C | M | H | E | O | K | Roughness | |||
| 15-65 | 1/2-2 1/2 | +1.6/-0.8 | 0.8 | -12.50% | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 3.2 | 6.4 | 6.4 | 0.8 |
| 80-100 | 3-4 | 1.6 | 1.6 | 6.4 | |||||||||
| 125-200 | 5-8 | +2.4/-1.6 | |||||||||||
| 250-450 | 10-18 | +4/-3.2 | 3.2 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 9.6 | ||||
| 500-600 | 20-24 | +6.4/-4.8 | 4.8 | 3.2 | 3.2 | 3.2 | 3.2 | 4.8 | 9.6 | ||||
| 650-750 | 26-30 | ||||||||||||
| 4.8 | 4.8 | 4.8 | 4.8 | ||||||||||
| 800-1200 | 32-48 | ||||||||||||
| 1250-1500 | 50-60 | +9.6/-6.4 | 6.4 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | |||||
| 1550-1750 | 62-70 | +12.7/-9.6 | 9.6 | 12.7 | 12.7 | ||||||||
| 1800-2000 | 72-80 | +16/-12 | 12 | 16 | 16 | ||||||||
Largest Inventory Of Stainless Steel 317 Pipe Fittings
- 317 Stainless Steel Elbow
- Stainless Steel 317 Pipe Fittings
- ASME B16.9 SS 317 Buttweld Fittings
- Stainless Steel 317 SR Elbow
- SS 317 Welded Fittings
- Stainless Steel 317 Reducing Cross
- UNS S31700 90° Short Radius Elbow
- Stainless Steel 317 Two Halve Butt weld Fittings
- 317 PN 16 Stainless Steel Pipe Nipple
- Stainless Steel 317 45 Deg Elbow
- ASTM A403 SS 317 Reducing Nipple
- Stainless Steel 317 End Cap
- 317 Stainless Steel Butt weld Elbow
- Stainless Steel 317 Equal Cross
- SS 317 Pipe Elbow
- Stainless Steel 317 Lap Joint Stub End
- SS 317 Reducer
- 317 Stainless Steel 180° LR Return Bends
- Stainless Steel 317 Pipe Bend
- ASME SA403 F317 SS Eccentric Reducer
- 317 Stainless Steel Butt weld Fittings
- ANSI B16.9 Stainless Steel 317 Pipe Fittings
- 317 Stainless Steel Lateral Tee
- SS 317 Long Stub End
- ASTM A403 F317 Buttweld Fittings
- 317 Stainless Steel Butt weld Tee
- SS 317 Stub End
- ANSI B16.9 Stainless Steel 317 Mandrel Bend
- WERKSTOFF NR. 1.4449 Barrel Nipple
- SS 317 Two Joint Pipe Fittings
- 317 Stainless Steel 90° Short Radius Elbow
- ASME SA403 F317 Long Radius Bend
- 317 Stainless Steel 1D Elbow/3D Elbow/5D Elbow
- Stainless Steel 317 Industrial Pipe Fittings
- 317 Stainless Steel LR Elbows
- SS 317 Butt weld Nipple
- SS 317 BS 4504 Piggable Bend
- SS 317 Long Stub End
ASTM A403 SS 317 Pipe Fittings Application
