Hastelloy C22 Pipe Fittings
Hastelloy Alloy C22 Elbow, Nickel Alloy C22 Pipe Fittings, Hastelloy C22 90 degree Elbow, Hastelloy C22 Buttweld Fittings at Best Price in India.
VM Energy Solutions INC is a recognised seller and trader of Hastelloy Alloy C22 Pipe Fittings, which gives more tensile yield strength, briefer and long-time creep strength. Hastelloy UNS N06022 Barrel Nipple Pipe Fittings is specifically obvious for pitting and crevice corrosion in chloride environments. It is used corrosion resistance, and is likewise frequently used as excessive temperature resistance. It prevents inter-granular corrosion due to including detail Titanium. This product gives itself well for its utilization in gas, chemical and petrochemical industries. It is likewise needless to anneal it following welding skinny sections. It prevents carbide precipitation on the grain barriers and protects the steel from corrosion. Continuous use of this alloy within the 425 Degree C – 860 Degree C variety isn't encouraged if next aqueous corrosion resistance is important. It is specifically used for transmission fluid in water gadget and also can be utilized in nuclear strength plants.
- Hastelloy C22 Pipe Fittings Standard Specification
- Hastelloy C22 Buttweld Fittings International Standard
- Hastelloy C22 Pipe Fittings Equivalent Grade
- Different Forms of Hastelloy Alloy C22 Pipe Fittings
- Hastelloy C22 Pipe Fittings Chemical Composition
- Hastelloy Alloy C22 Pipe Fittings Mechanical Properties
- Hastelloy C22 Buttweld Fittings Thickness Chart
- Hastelloy C22 Pipe Fittings Tolerance Chart
- Largest Inventory Of Hastelloy C22 Pipe Fittings
Our stock is supplied with pinnacle of the road hardware is match for delivering these Hastelloy WNR 2.4602 Long Radius Bend Pipe Fittings of the maximum complicated nature in line with patron prerequisites. It gives expanded carbon content material heat resistant qualities. It is without problems brake or roll formed into quite a few elements for applications within the commercial, architectural, and transportation fields. It is utilized in Coastal balustrade, Boat fittings, Chemical transportation containers, Heat exchangers, and extra with numerous sizes, lengths and dimensional specifications. The austenitic shape of this steel offers splendid toughness, even at cryogenic temperatures.
UNS N06022 Pipe Cap, Hastelloy® Alloy C22 Reducer, ASTM B366 Hastelloy Alloy C22 Pipe Fittings, DIN 2.4602 45 Degree Elbow, ANSI B16.9 Nickel Alloy C22 Stub End, Alloy C22 Pipe Tee, Hastelloy C22 Pipe Elbow Supplier in Mumbai, India.
Most important properties of these Nickel Alloy C22 Piggable Bend Pipe Fittings are excessive corrosion resistance, higher corrosion resistance, and advanced pitting resistance compared to other steel grades. It will increase corrosion resistance, complements resistance to pitting chloride ion solutions and provide extended strength at excessive temperatures. The shape of this steel offers this alloy amazing robustness, and so it additionally resists corrosion in polluted marine conditions. The key detail of this alloy that differentiates it from maximum other steels is the inclusion of molybdenum, which complements its resistance corrosion in standard and pitting corrosion in particular.
We Keep Bulk Stock Of UNS N06022 Pipe Bend, Hastelloy C22 Pipe Fittings at Our Stockyard, Check Hastelloy Alloy C22 Welded Fittings Dimension, Buy Alloy C22 Seamless Pipe Fittings at an Affordable Price In India.
Hastelloy C22 Pipe Fittings Standard Specification
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2" - 10" Welded Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Hastelloy C22 Buttweld Fittings International Standard
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SA-403 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Stainless steel butt-welding fittings |
| MSS SP-43 | Wrought stainless steel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Hastelloy C22 Pipe Fittings Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | - | NiCr21Mo14W | NW 6022 | - | - |
Different Forms of Hastelloy C22 Pipe Fittings
Hastelloy C22 Elbow
Hastelloy C22 Stub End
Hastelloy C22 Cross

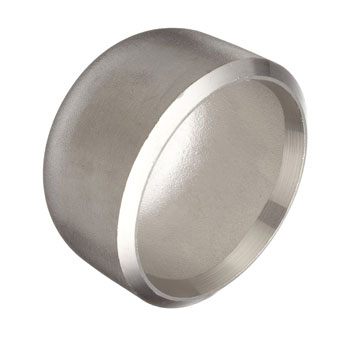

Hastelloy C22 Pipe Cap

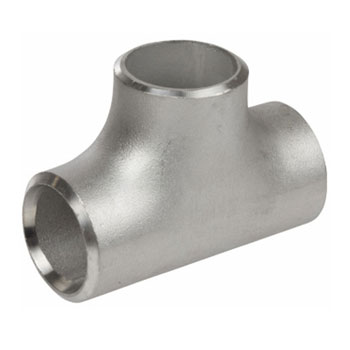

Hastelloy C22 Tee
Hastelloy C22 Pipe Bend
Hastelloy C22 Pipe Nipple
Hastelloy C22 Concentric Reducer
Hastelloy C22 Eccentric Reducer
Hastelloy C22 Pipe Fittings Chemical Composition
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
Hastelloy Alloy C22 Pipe Fittings Mechanical Properties
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
Bulk Stock of Hastelloy® Alloy C22 Pipe Fittings, Rate of ASTM B366 Hastelloy C22 Pipe Cap in India, Check online Alloy C22 Elbow Pressure Ratings, Largest DIN 2.4602 Reducer Stockist in India, We offer Hastelloy C22 Stub End in almost all Sizes.
Hastelloy C22 Buttweld Fittings Thickness Chart
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Hastelloy C22 Pipe Fittings Tolerance Chart
| Nominal Diameter | O.D.For Bevel End | I.D.For End | Wall Thickness | Elbow | Tee | Reducer | Cap | 180°Elbow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | A | B | C | M | H | E | O | K | Roughness | |||
| 15-65 | 1/2-2 1/2 | +1.6/-0.8 | 0.8 | -12.50% | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 3.2 | 6.4 | 6.4 | 0.8 |
| 80-100 | 3-4 | 1.6 | 1.6 | 6.4 | |||||||||
| 125-200 | 5-8 | +2.4/-1.6 | |||||||||||
| 250-450 | 10-18 | +4/-3.2 | 3.2 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 9.6 | ||||
| 500-600 | 20-24 | +6.4/-4.8 | 4.8 | 3.2 | 3.2 | 3.2 | 3.2 | 4.8 | 9.6 | ||||
| 650-750 | 26-30 | ||||||||||||
| 4.8 | 4.8 | 4.8 | 4.8 | ||||||||||
| 800-1200 | 32-48 | ||||||||||||
| 1250-1500 | 50-60 | +9.6/-6.4 | 6.4 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | |||||
| 1550-1750 | 62-70 | +12.7/-9.6 | 9.6 | 12.7 | 12.7 | ||||||||
| 1800-2000 | 72-80 | +16/-12 | 12 | 16 | 16 | ||||||||
Largest Inventory Of Hastelloy C22 Pipe Fittings
- Hastelloy® Alloy C22 Pipe Bend
- Nickel Alloy C22 Equal Cross
- Hastelloy C22 Reducing Cross
- ASTM B366 Hastelloy Alloy C22 Reducing Nipple
- Hastelloy C22 45 Deg Elbow
- UNS N06022 90° Short Radius Elbow
- Alloy C22 Elbow
- Hastelloy C22 SR Elbow
- Alloy C22 Butt weld Elbow
- Hastelloy® Alloy C22 180° LR Return Bends
- Hastelloy Alloy C22 Welded Fittings
- Hastelloy C22 Pipe Fittings
- ASME B16.5 Nickel Alloy C22 Buttweld Fittings
- Hastelloy C22 Reducer
- Hastelloy Alloy C22 Pipe Elbow
- Hastelloy C22 Two Halve Butt weld Fittings
- Hastelloy C22 End Cap
- C22 PN 16 Hastelloy Pipe Nipple
- Hastelloy® Alloy C22 Lap Joint Stub End
- Hastelloy C22 BS 4504 Piggable Bend
- Alloy C22 1D Elbow/3D Elbow/5D Elbow
- Hastelloy C22 Butt weld Tee
- Alloy C22 Lateral Tee
- Hastelloy C22 Industrial Pipe Fittings
- Hastelloy Alloy C22 Two Joint Pipe Fittings
- ASME SB366 Nickel Alloy C22 Long Radius Bend
- Hastelloy Alloy C22 Long Stub End
- ANSI B16.5 Hastelloy C22 Pipe Fittings
- Hastelloy® Alloy C22 90° Short Radius Elbow
- ASME SB366 Nickel Alloy C22 Eccentric Reducer
- Hastelloy C22 LR Elbows
- ASTM B366 Hastelloy C22 Buttweld Fittings
- Hastelloy Alloy C22 Long Stub End
- ANSI B16.5 Hastelloy C22 Mandrel Bend
- WERKSTOFF NR. 2.4602 Barrel Nipple
- Hastelloy Alloy C22 Stub End
- C22 Hastelloy Butt weld Fittings
- Hastelloy Alloy C22 Butt weld Nipple
ASTM B366 Hastelloy Alloy C22 Pipe Fittings Application
