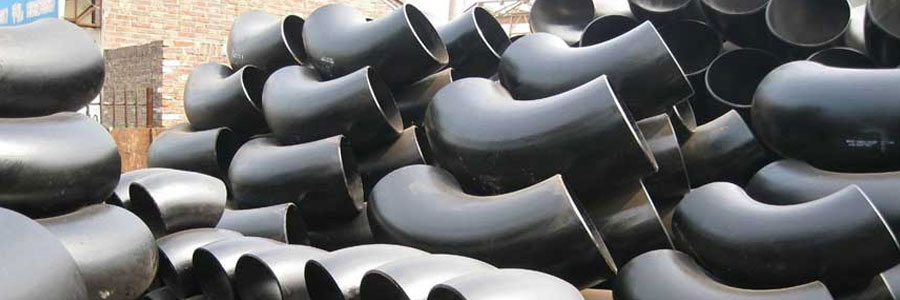

Carbon Steel A234 WPB Pipe Fittings

Carbon Steel A234 WPB 90 degree Elbow, Carbon Steel A234 WPB Pipe Fittings, ASTM A234 WPB Carbon Steel Buttweld Fittings, A234 WPB Carbon Steel Elbow, Carbon Steel A234 WPB Equal Tee at Best Price in India.

VM Energy Solutions INC is a recognised supplier and exporter of CS A234 WPB Pipe Fittings, which may be readily formed and drawn and is non hardenable through heat remedy. Carbon Steel ASTM A234 WPB Barrel Nipple Pipe Fittings is likewise utilized in Air Pollution Control — flue gas desulfurization structures (FGD); Chemical and Petrochemical Processing; Explosives; Food and Beverage Processing; Petroleum Refining; Power Generation — condensers; Pulp and Paper; etc. It is as well utilized in Slurry tanks, Stack liners, Tanks, Valves, and so forth. It is majorly used for increased temperature applications, such as handling hot natural and fatty acids, boat rails and hardware and facades of homes close to the ocean. Shearing, stamping, heading and drawing are feasible with this steel, and post-working annealing is suggested to cast off inner stresses.

Table of Contents
Elbows

We produce this ASTM A234 Carbon Steel WPB Long Radius Bend Pipe Fittings with a complete variety of grade and sizes to cowl maximum machining and structural applications. They are substantially extra resistant than any of the opposite chromium-nickel kinds to solutions of sulphuric acid. Other applications of this steel encompass the producing of chemical device and the machines utilized in pulping paper. It may be without problems welded and processed through standard keep fabrication practices. It is used for Marine additives and Food Processing. It is supposed for higher corrosion resistance and accelerated resistance to chemical assault for sulphurous, acetic, formic, citric, and tartaric acids.

Carbon Steel A234 WPB Pipe Cap, ASTM A234 Carbon Steel WPB Piggable Bend, Carbon Steel A234 WPB 45 Degree Elbow, Carbon Steel A234 WPB Pipe Tee, ANSI B16.9 Carbon Steel A234 WPB Stub End, Carbon Steel A234 WPB Pipe Elbow, ASTM A234 Gr WPB Reducer Supplier in Mumbai, India.


Carbon Steel A234 WPB Pipe Fittings

ASME SA 234 Carbon Steel WPB Piggable Bend Pipe Fittings is non-magnetic within the annealed circumstance however might also additionally end up barely magnetic due to welding. It acts as a lubricant all through patron component forming operation. With the addition of nitrogen as a strengthening agent, it is able to be non-magnetic within the annealed circumstance. Industries that use this steel encompass Pharmaceutical, Power generation, Pulp and Paper. It gives corrosion resistant and its applications encompass furnace elements including conveyor belts, rollers, burner elements, refractory supports, etc. It ought to be heated to 1149 Degree C - 1260 Degree C (2100 Degree F - 2300 Degree F).

We Keep Bulk Stock Of Carbon Steel A234 WPB Pipe Bend, A234 CS WPB Steel Pipe Fittings at Our Stockyard, Check ASTM A234 WPB Welded Fittings Dimension, Buy Carbon Steel WPB Seamless Pipe Fittings at an Affordable Price In India.

Carbon Steel A234 WPB Pipe Fittings Standard Specification


Specifications ASTM A234 / ASME SA234
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Carbon Steel A234 WPB Buttweld Fittings International Standard


Standard Code Standard Name
American Steel Pipe Fittings Standard
ANSI ASME SA-403 Forged Durimet pipe fittings
ANSI ASME B16.9 Factory-Made wrought steel pipe fittings
ANSI ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ISO 5251 Stainless steel butt-welding fittings
MSS SP-43 Wrought stainless steel butt-welding fittings
MSS SP-75 Forging butt-welding fittings
German Steel Pipe Fittings Standard
DIN 2605 Steel butt-welding pipe fittings.elbows and bends
DIN 2615 Steel butt-welding pipe fittings.tees
DIN 2616 Steel butt-welding pipe fittings.reducers
DIN 2617 Steel butt-welding pipe fittings.caps
Japanese Steel Pipe Fittings Standard
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
JIS B2313 Steel plate butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025 3 Butt-welding pipe fittings

Carbon Steel A234 WPB Pipe Fittings Equivalent Grade


Pipe Fittings Flanges Valves Bolts & Nuts
A106 Gr A A234 Gr WPA A105 A216 Gr WCB A193 Gr B7
A194 Gr 2H
A106 Gr B A234 Gr WPB A105 A216 Gr WCB
A106 Gr C A234 Gr WPC A105 A216 Gr WCB

Different Forms of Carbon Steel A234 WPB Pipe Fittings


Carbon Steel A234 WPB Elbow

Carbon Steel A234 WPB Elbow

Carbon Steel A234 WPB Stub End

Carbon Steel A234 WPB Stub End

Carbon Steel A234 WPB Cross

Carbon Steel A234 WPB Cross

Carbon Steel A234 WPB Pipe Cap

Carbon Steel A234 WPB Pipe Cap

Carbon Steel A234 WPB Tee

Carbon Steel A234 WPB Tee

Carbon Steel A234 WPB Pipe Bend

Carbon Steel A234 WPB Pipe Bend

Carbon Steel A234 WPB Pipe Nipple

Carbon Steel A234 WPB Pipe Nipple

Carbon Steel A234 WPB Concentric Reducer

Carbon Steel A234 WPB Concentric Reducer

Carbon Steel A234 WPB Eccentric Reducer

Carbon Steel A234 WPB Eccentric Reducer

Carbon Steel A234 WPB Pipe Fittings Chemical Composition


Grade C Mn P S Si Cr Mo
WPB 0.30 max 0.29-1.06 0.050 0.058 0.10 min 0.40 max 0.15 max
WPC 0.35 max 0.29-1.06 0.050 0.058 0.10 min 0.40 max 0.15 max
WP1 0.28 max 0.30-0.90 0.045 0.045 0.10-0.50 … 0.44-0.65
WP12 CL1, WP12 CL2 0.05-0.20 0.30-0.80 0.045 0.045 0.60 max 0.80-1.25 0.44-0.65
WP11 CL1, 0.05-0.15 0.30-0.60 0.030 0.030 0.50-1.00 1.00-1.50 0.44-0.65
WP11 CL2, WP11 CL3 0.05-0.20 0.30-0.80 0.040 0.040 0.50-1.00 1.00-1.50 0.44-0.65
WP22 CL1, WP22 CL3 0.05-0.15 0.30-0.60 0.040 0.040 0.50 max 1.90-2.60 0.87-1.13
WP5 CL1, WP5 CL3 0.15 max 0.30-0.60 0.040 0.030 0.50 max 4.0-6.0 0.44-0.65
WP9 CL1, WP9 CL3 0.15 max 0.30-0.60 0.030 0.030 1.00 max 8.0-10.0 0.90-1.10
WPR 0.20 max 0.40-1.06 0.045 0.050 … … …
WP91 0.08-0.12 0.30-0.60 0.020 0.010 0.20-0.50 8.0-9.5 0.85-1.05
WP911 0.09-0.13 0.30-0.60 0.020 0.010 0.10-0.50 8.5-9.5 0.90-1.10

Carbon Steel A234 WPB Pipe Fittings Mechanical Properties


Grade Tensile Requirements Tensile Strength, min, ksi[MPa] (0.2% offset or 0.5% extension-under-load) Yield Strength, min, ksi[MPa]
WPB 60-85 70-95 60-85 　75-100
WPC, WP11CL2 [415-585] [485-655] [415-585] 　[520-690]
WP11CL1 32 40 30 45
　WP11CL3 [240] [275] [205] [310]
Flanges Icon

Bulk Stock of A234 CS WPB Pipe Fittings, Rate of ASTM A234 WPB Pipe Cap in India, Check online Carbon Steel A234 WPB Elbow Pressure Ratings, Largest Carbon Steel A234 WPB Reducer Stockist in India, We offer Carbon Steel A234 WPB Stub End in almost all Sizes.

Carbon Steel A234 WPB Buttweld Fittings Thickness Chart


Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Carbon Steel A234 WPB Pipe Fittings Tolerance Chart


Nominal Diameter O.D.For Bevel End I.D.For End Wall Thickness Elbow Tee Reducer Cap 180°Elbow
DN NPS A B C M H E O K Roughness
15-65 1/2-2 1/2 +1.6/-0.8 0.8 -12.50% 1.6 1.6 1.6 1.6 1.6 3.2 6.4 6.4 0.8
80-100 3-4 1.6 1.6 6.4
125-200 5-8 +2.4/-1.6
250-450 10-18 +4/-3.2 3.2 2.4 2.4 2.4 2.4 2.4 9.6
500-600 20-24 +6.4/-4.8 4.8 3.2 3.2 3.2 3.2 4.8 9.6
650-750 26-30
4.8 4.8 4.8 4.8
800-1200 32-48
1250-1500 50-60 +9.6/-6.4 6.4 9.6 9.6 9.6 9.6 9.6
1550-1750 62-70 +12.7/-9.6 9.6 12.7 12.7
1800-2000 72-80 +16/-12 12 16 16

Largest Inventory Of Carbon Steel A234 WPB Pipe Fittings


  • Carbon Steel A234 WPB End Cap
  • Carbon Steel A234 WPB 90° Short Radius Elbow
  • A234 WPB Carbon Steel 45 Deg Elbow
  • Carbon Steel A234 WPB Pipe Bend
  • ASME B16.9 A234 WPB Carbon Steel Buttweld Fittings
  • Carbon Steel A234 WPB Two Halve Butt weld Fittings
  • Carbon Steel A234 WPB SR Elbow
  • A234 WPB Carbon Steel Equal Cross
  • Carbon Steel A234 WPB Pipe Nipple
  • Carbon Steel A234 WPB Elbow
  • A234 WPB Carbon Steel Welded Fittings
  • Carbon Steel A234 WPB Reducing Cross
  • Carbon Steel A234 WPB Lap Joint Stub End
  • ASTM A234 WPB Carbon Steel Reducing Nipple
  • Carbon Steel A234 WPB Pipe Fittings
  • A234 WPB Carbon Steel Butt weld Elbow
  • Carbon Steel A234 WPB 180° LR Return Bends
  • A234 WPB Carbon Steel Pipe Elbow
  • Carbon Steel A234 WPB Reducer
  • Carbon Steel A234 Gr WPA Lateral Tee
  • ASME SA234 Carbon Steel A234 WPB Eccentric Reducer
  • Carbon Steel A234 Gr WPC LR Elbows
  • A234 CS WPB Butt weld Tee
  • Carbon Steel A234 WPB Barrel Nipple
  • ASTM A234 WPB Carbon Steel Buttweld Fittings
  • Carbon Steel A234 WPB Stub End
  • A234 WPB Carbon Steel Long Stub End
  • Carbon Steel A234 WPB Industrial Pipe Fittings
  • ANSI B16.9 Carbon Steel A234 WPB Mandrel Bend
  • Carbon Steel A234 WPB Butt weld Fittings
  • A234 CS WPB 1D Elbow/3D Elbow/5D Elbow
  • Carbon Steel A234 Gr WPA Two Joint Pipe Fittings
  • ASME SA234 Carbon Steel A234 Gr WPB Long Radius Bend
  • Carbon Steel A234 WPB 90° Short Radius Elbow
  • ANSI B16.9 A234 WPB Carbon Steel Pipe Fittings
  • Carbon Steel A234 Gr WPC BS 4504 Piggable Bend
  • A234 WPB Carbon Steel Butt weld Nipple
  • Carbon Steel A234 Gr WPA Long Stub End
